Bi-Directional
Product
RM3-S3-x103K-B/ RM3-S4-x103K-B

OptoMedia 3G-SDI optical bi-directional transceiver enables two-way communication over only 1-core optic fiber. It supports multi-rate transmission from SDI electrical signal at SMPTE 259M, SMPTE 292M to SMPTE 424M. It supports data rate 3Gbps and error-free under pathological test.

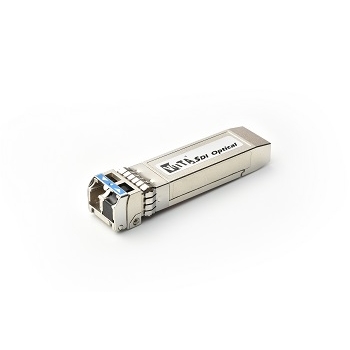

  • 8-RM3-S3-4103K-B

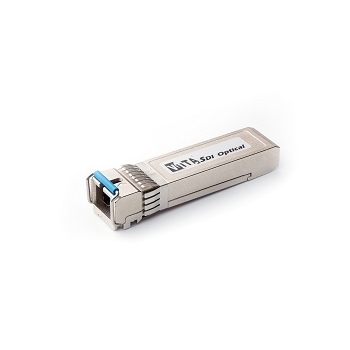

  • 3-RM3-S1-2103K-T0(R0)
  • 1-port LC for 2-way transmission in 1 SFP package
  • Support transmission of SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • Handles pathological patterns for 3G-SDI, HD-SDI and SD-SDI
  • Digital diagnostics function
  • 10km over single mode fiber
  • Low power consumption- Typical 200 mA
  • MSA pinout
  • LC and SC of connectors to choose from

Parameter Min Typ Max
RM3-S3-4103K-B Wavelength (nm) TX 1310/ RX 1550
RM3-S4-4103K-B Wavelength (nm) TX 1550/ RX 1310
Operating case temperature range (℃) 0   70
Storage temperature range(℃) -40   85
Power supply voltage (V) 3.1 3.3 3.5
Power consumption (mA)   200 300
